Equipment for general characterization

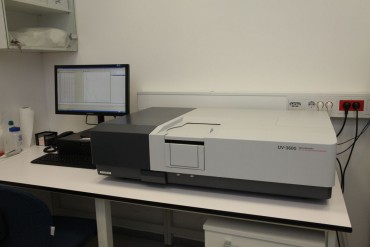

UV-Vis-NIR Spectrophotometer (Shimadzu UV-3600)

• Wavelength Range: 185 nm - 3300 nm
• Resolution: 0.1 nm
• Sampling Pitch: 0.01 - 5 nm
• Photometric Range: -6 to 6 Abs
• Photometric System: Double beam
• Three Detectors: PMT, InGaAs, PgS
• ISR-3100 Integrating Sphere Attachment, 60 mm (Wavelength Range: 240 nm – 2400 nm)

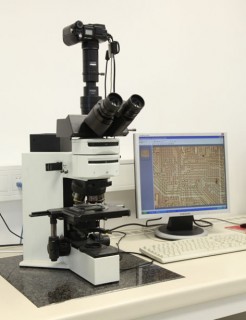

Optical light microscope (Olympus BX 50)

• Reflected and transmitted light microscope
• Amici Bertrand lens

• Plan semi apochromat objective lenses for polarized light observations
• Polarizer and rotatable analyzer sliders
• Light balancing and neutral density filter sliders
• Circular graduated stage

• CCD camera

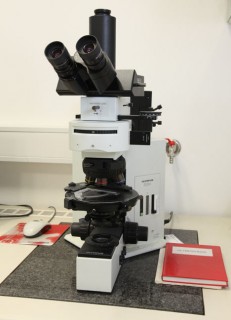

Optical light microscope (Olympus BX 60)

• Reflected and transmitted light microscope
• Plan semi apochromat objective lenses for bright and dark field observations
• Polarizer and rotatable analyzer sliders
• Green interference filter slider
• CCD camera

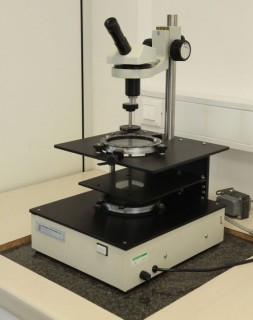

Polarimeter (Stainoptics Technologies)

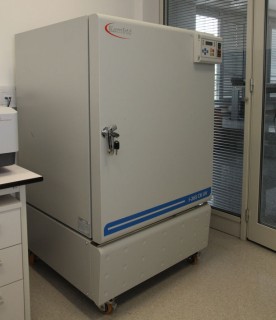

Incubator (Kambič I-265 CKUV)

• Enables irradiation of samples with UV, Vis or sunlight.
• Work Volume: 264 l
• Temperature Region. -10 °C -100 °C
• Lamps (Osram):
• UVA: Blacklight Blue Lamps L18/73
• UVB: HNS 15W G13
• Vis: LED Parathon PAR16 5W
• Sunlight: Ultra-Vitalux 300W
